PRODUCTS
S-SERIES
Recessed Box with optional flanges and hinged cover to conceal blinds flush with wall or ceiling finished surface
S 100X100SS
Standard Headbox with double flanges
ARTICLE: 56002
S 100x100NS
Standard Headbox with single flange
ARTICLE: 56001
S 100x100NN
Standard Headbox with no flanges
ARTICLE: 56000
S 130x130 SS
Standard Headbox with double flanges
ARTICLE: 56022
S 130x130 NS
Standard Headbox with single flange
ARTICLE: 56021
S 130x130NN
Standard Headbox with no flanges
ARTICLE: 56020
S 100x50SS
Sidebox or hembar box w double flanges- used for side channels and/or hidden hembar for complete blackout and concealment
ARTICLE: 56030
S 100x50SS
Sidebox or hembar box w double flanges - used for side channels and/or hidden hembar for complete blackout and concealment
ARTICLE: 56035
Standard Wall Mount SWM
Wall mount and cover plates to conceal blinds in existing Ceiling Cavity or be used as a pelmet to hide blinds
ARTICLE: 86020
BOX ACCESSORIES
Two standard S SERIES boxes can be connected and aligned with 4 splice pins and cover with 1 splice plate.. Hole grommets are used for cable entry holes.
Clip-on hinge
Clip-on Hinge to connect boxes and cover flaps
CH25
ARTICLE: 86030
Cable Grommet
Grommet for cable entry
HG1
ARTICLE: 53120

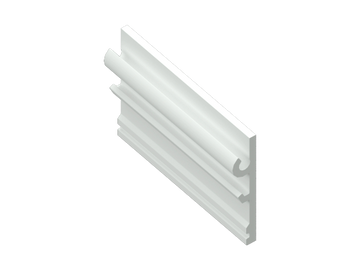

Splice Plate
Splice plate with screws to align cover plates
SPLA1
ARTICLE: 53010
Splice Pin
Splice pin to align boxes and TrackTrim tracks
SPLI1
ARTICLE: 53100
TRACKTRIM
Recessed profiles to house curtain tracks

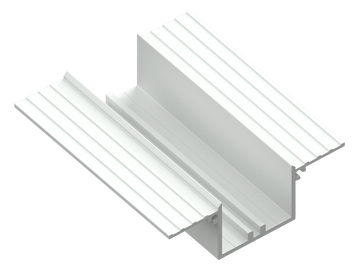

Tracktrim Track with Screw Channel
TT1F
ARTICLE: 71002
TRACKTRIM CURVED SECTION
Curved sections are available in various radius with 508mm being the most popular option. Make sure to double check the radius of the curtain track you plan to use. When installing curved sections we recommend using a short piece of curved curtain track to ensure it has the same radius. Four sections are needed for 90 degrees, two sections for 45. Short splice pins are used to connect sections.
250mm
Curved Section 22.5 Degrees with 250mm Radius
TTCR250
ARTICLE: 70059
290mm
Curved Section 22.5 Degrees with 290mm Radius
TTCR290
ARTICLE: 70060
300mm
Curved Section 22.5 Degrees with 300mm Radius
TTCR300
ARTICLE: 70061
330mm
Curved Section 22.5 Degrees with 330mm Radius
TTCR330
ARTICLE: 70062
365mm
Curved Section 22.5 Degrees with 365mm Radius
TTCR365
ARTICLE: 70065
440mm
Curved Section 22.5 Degrees with 440mm Radius
TTCR440
ARTICLE: 70066
480mm
Curved Section 22.5 Degrees with 480mm Radius
TTCR480
ARTICLE: 70067
508mm
Curved Section 22.5 Degrees with 508mm Radius
TTCR508
ARTICLE: 70063
TRACKTRIM MOTOR AND RETURN ENDS

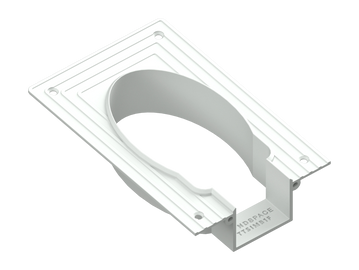

Lutron Motor Box
Motor Box w Flanges for Lutron System
TTLMB1F
ARTICLE: 70021
Lutron Return Box
Return Box w Flanges for Lutron system TTLRB1F
ARTICLE: 70022
Somfy Motor Box
Motor Box w Flanges for Somfy System
TTSMB1F
ARTICLE: 70041
Somfy Return Box
Return Box w Flanges for Somfy System
TTSRB1F
ARTICLE: 70024
Somfy Motor Box for Inverted Install
Motor Box w Flanges for Inverted Install for Somfy
TTSIMB1F
ARTICLE: 70032
Crestron Motor Box
Motor Box w Flanges for Crestron System
TTCMB1F
ARTICLE: 70033
Crestron Return Box
Return Box w Flanges for Crestron System
TTCRB1F
ARTICLE: 70034
Flat End with Flange
Flat End w Flange for Manual 35mm Curtain Track
TTFE35F
ARTICLE: 70072
Flat End without Flange
Flat End for Manual 35mm Curtain Track
TTFE35
ARTICLE: 70072
TRACKTRIM FIXING BRACKETS
Fixing brackets are installed into the Curtain track to align the track to Tracktrim housing
Lutron Bracket
Fixing Bracket for Lutron Curtain Track
TTL1
ARTICLE: 61012
Somfy Bracket
Fixing Bracket for Somfy Glydea Curtain Track
TTS1
ARTICLE: 61016
Crestron Bracket
Fixing Bracket for Crestron Curtain Track
TTC1
ARTICLE: 61011
TRACKTRIM ACCESSORIES
Allen key used to tighten grub screw on fixing brackets to secure brackets to the track . The curtain track protector allows you to attach your track to Tracktrim housing without damaging paint on the inside of your track.
Allen Key
Allen Key for Grub Screw in Fixing Brackets
AKFB
ARTICLE: 60073
Curtain Track Protector
Curtain Track Protector
CTP
ARTICLE: 60070
Short Splice Pin
Short splice pin to align TrackTrim curved sections
SPLI2
ARTICLE: 53111
Splice Pin
Splice pin to align boxes and TrackTrim tracks
SPLI1
ARTICLE: 53100
